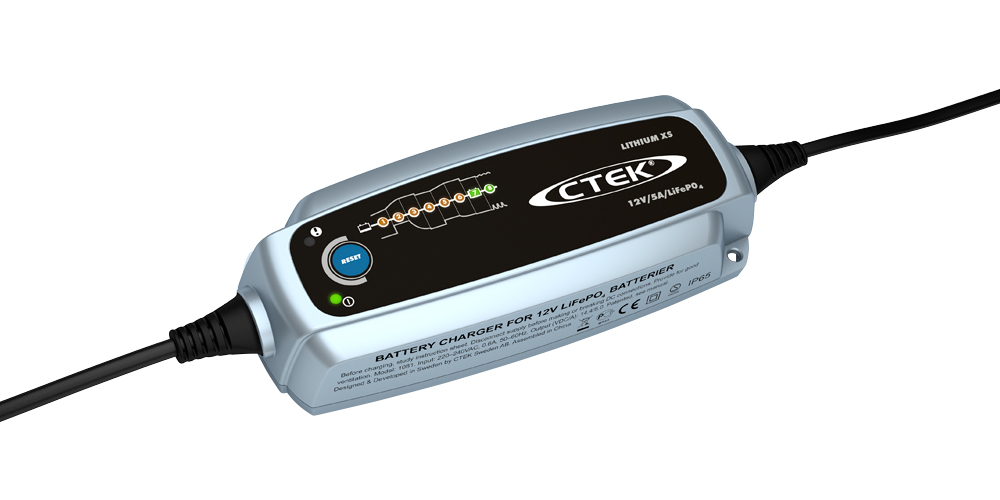

LITHIUM XS UK

The LITHIUM XS is an advanced microprocessor controlled charger and maintainer specially designed for Lithium (12V LiFePO4) batteries.

Part no. 40-003

Dedicated Lithium Battery Care

Unique Maximisation Step with Patented Maintenance Charging

UVP 'wake up': If your lithium battery has Under Voltage Protection

Connect and Forget

Description

12V | Automatic charging of Lithium (12V LiFePO4) batteries

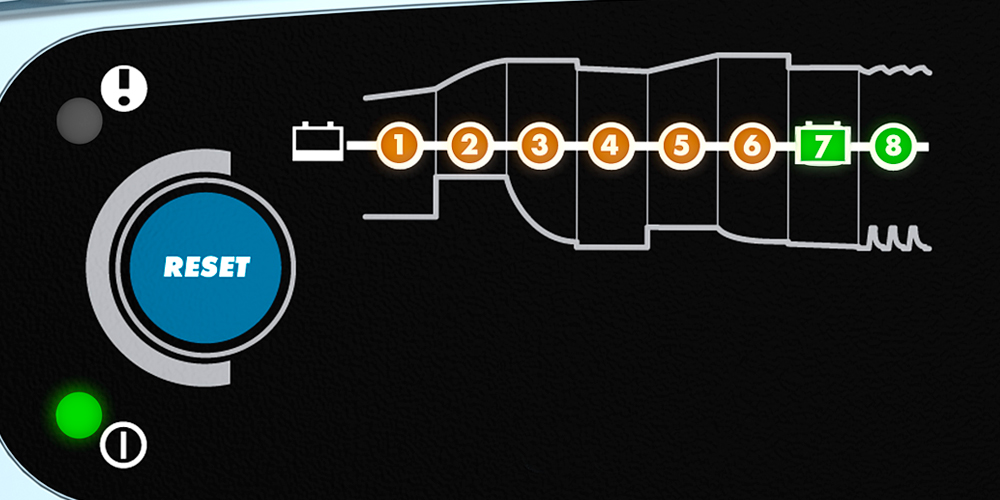

The LITHIUM XS is specially designed for Lithium (12V LiFePO4) batteries. With up to 5A of charge current available, it can charge LiFePO4 batteries from 5Ah to 60Ah and maintain up to 120Ah. It’s easy to use – just connect it and charging starts immediately. There’s no need to disconnect your battery and any low voltage protection electronics will be reset automatically. The LITHIUM XS is a ‘connect and forget’ charger with 8 charging steps, a testing sequence that tells you if the battery can take and retain the charge, a unique maximisation step to restore full capacity and patented maintenance charging for maximum performance, even after months of inactivity.

Features

Reverse polarity protection
Splash proof and dust proof (IP65)

LITHIUM_XS-manual-low-UK-EN.pdf

LITHIUM_XS-productsheet-low-UK-EN.pdf

Input220–240 VAC, 50–60 Hz, 0.65 A
Output13.8/14.4 V, 5.0 A
Battery capacity5–120 Ah
Charging categoryAC charging
Back current drain*Corresponding to less than 1 Ah/month
Battery voltage12 V
Battery chemistryLithium-ion
Ambient operating temperature-20 ˚C to +50 ˚C
Battery types12 V:; LiFePO₄
Degree of protectionIP65
Warranty5 years

*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.
