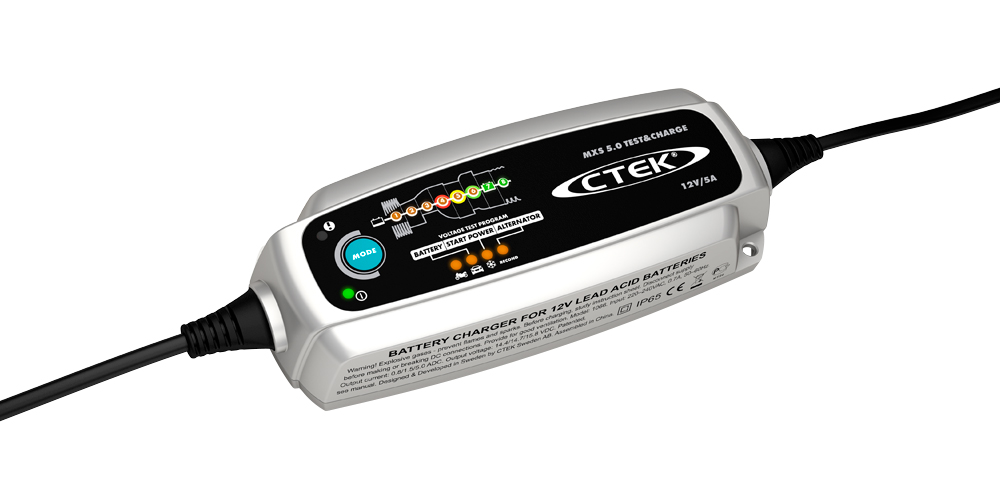

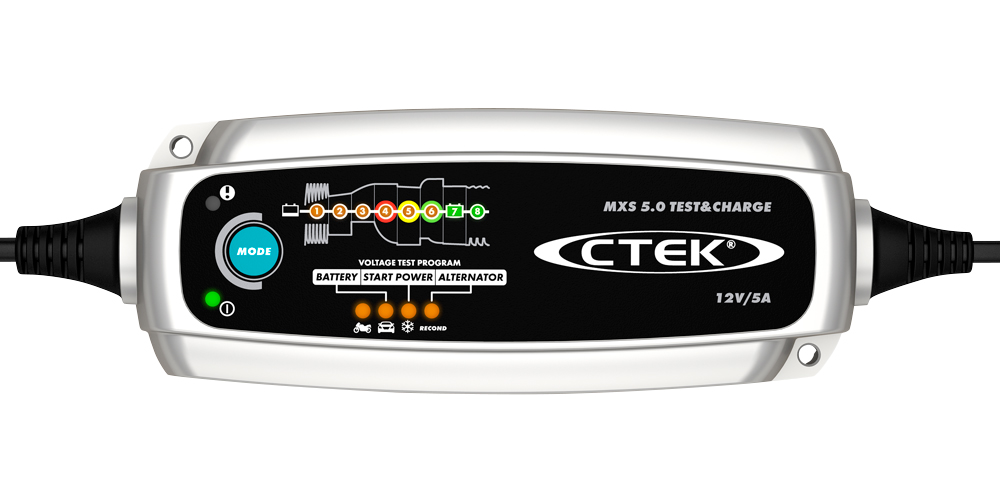

MXS 5.0 TEST&CHARGE UK

The MXS 5.0 TEST & CHARGE combines an advanced charger with the ability to easily test the battery, generator and starter motor.

Part no. 56-976

Tests Battery and Alternator

Perfect for Demanding 12V Lead Acid Batteries

Connect and Forget

Protects Sensitive Equipment

Description

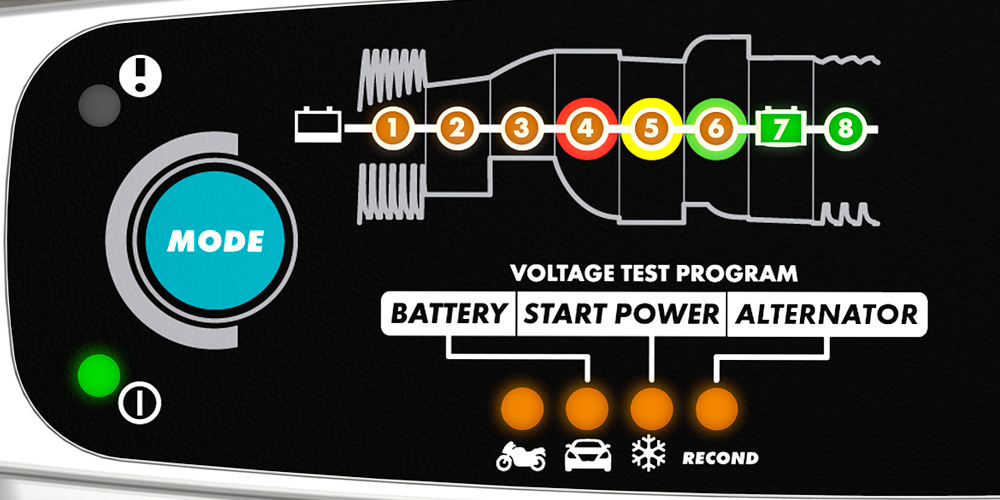

12V | Tests voltage, start power and alternator performance

The MXS 5.0 TEST & CHARGE is suitable for use with batteries from 1.2Ah-110Ah. Its testing function gives you three easy to use programs to test battery voltage, start power and alternator performance to give you a complete picture of battery and vehicle charging system health. The MXS 5.0 TEST & CHARGE also includes a patented automatic desulphation program, a special Recond mode for reconditioning deeply discharged batteries and CTEK’s patented float/pulse system, which is the most efficient maintenance mode when a battery is connected for long periods.

Features

Charges batteries from 1.2Ah up to 110Ah
Patented float/pulse maintenance phase
Easy to read LED display
Splash and dust proof (IP65)
Safe spark free operation
Reverse polarity protected
Short circuit proof
Fully automatic ‘connect and forget’ charging
Easy to use battery and alternator testing function
Charges batteries up to 110Ah
Smaller battery, normal battery, cold weather and Recond programs
5-year warranty

MXS_5.0_TEST_CHARGE-manual-low-UK-EN.pdf

MXS_5.0_TEST_CHARGE-productsheet-low-UK-EN.pdf

Charging categoryAC charging
Input220–240 VAC, 50–60 Hz, 1.1 A
Output14.4/14.7/15.8 V, 5.0 A
Battery chemistryLead acid
Battery types12 V:; WET; MF; Ca/Ca; AGM; GEL
Battery capacity1.2–110 Ah
Back current drain*Corresponding to less than 1 Ah/month
Battery voltage12 V
Ambient operating temperature-20 ˚C to +50 ˚C (- 4 °F to +122 °F)
Start voltage2.0 V
Ripple**Less than 4 %
Degree of protectionIP65
Warranty5 years
DisclaimerAll products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.

*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.

MXS_5.0_TEST_CHARGE-manual-low-UK-EN.pdf

MXS_5.0_TEST_CHARGE-productsheet-low-UK-EN.pdf
