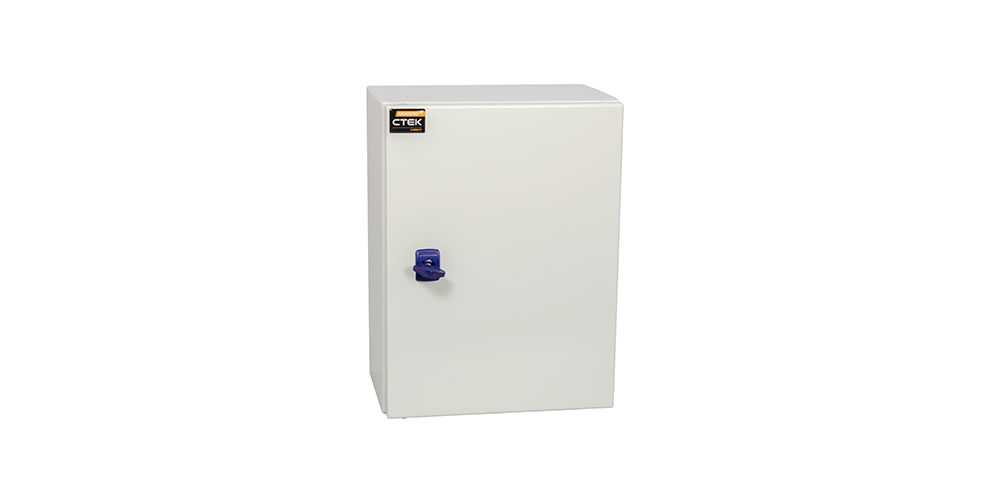

CTEK GRID CENTRAL 500 - CGC500™ 100A
The CGC500™ can monitor and manage up to 500 charging station EV connectors. It can monitor other loads at the installation site for load balancing of the entire power network. CGC500™ comes in three different versions depending on the chosen current sensor: CGC500™ for 100 A has a maximum conductor diameter of 15.7 mm. The CGC500™ communicates with the charging stations using a LAN connection. IP66 and IK10.
Part no. 40-382
A high capacity version of CTEK’s grid central for NANOGRID™load balancing and monitoring of electrical vehicle charging networks.
CGC500™ consists of the following components: One enclosure with keys and with the following components mounted inside:
- Energy meter with current transformers (depending on specied ampere level)
- Industrial PC
- Power supply 24 V
- Fuse 10A
- Terminal blocks for 230VAC
- Triangular key for door
- All the components are mounted on a DIN rail
