Knowing when a vehicle battery in the showroom needs a charge and being able to deal with it simply and quickly, is vital in helping dealerships to deliver a first-class experience to the customer, right from the moment they step into the showroom.

Part no. 40-216


Charging solution for dealership showrooms or fairs

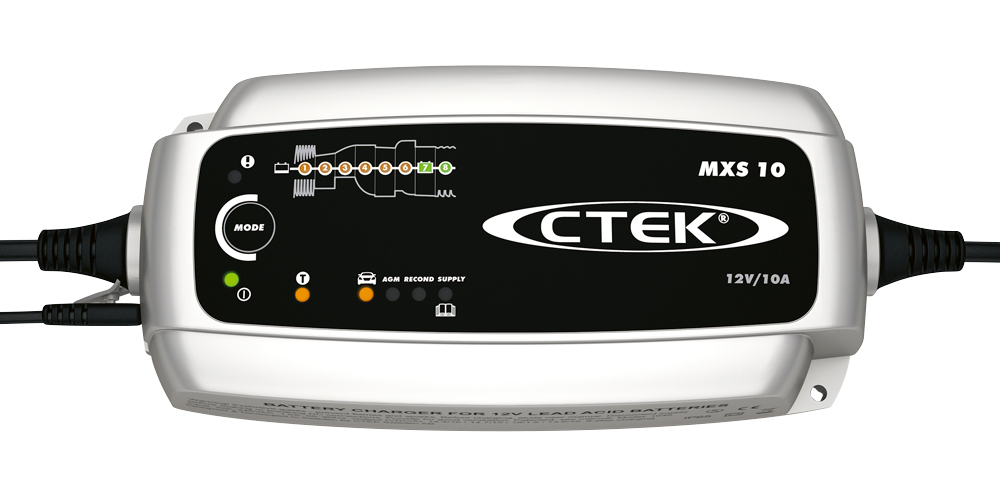

The MXS10 CIC is a battery management system that will help to monitor and maintain vehicle batteries in the showroom. It consists of two highly effective and simple to use pieces of equipment: A simple ‘traffic light’ Comfort Indicator allows dealership staff to easily monitor battery status and identify if the battery needs a charge. A CTEK MXS10 battery charger delivers a 10A charge safely, and without the need to remove the battery from the vehicle. The unique CTEK Comfort Connect system allows the charger to be connected to the battery via the Comfort Indicator, enabling showroom staff to safely, simply and quickly deliver a charge without assistance from a technician. By taking a pro-active approach to battery management and using the MXS10 CIC system, battery related problems in the showroom can be eliminated, maximizing the customer experience and protecting dealership and brand reputation.


  • Maintains larger batteries up to 300Ah
  • Easy to read LED display
  • Comes with Connect – Eyelet and Connect – Clamp connectors
  • Splash and dust proof (IP65)
  • Safe spark free operation
  • Reverse polarity protected
  • Short circuit proof

Technical data

220–240 VAC, 50–60 Hz, 1.4 A
14.4/14.7/15.8/13.6 V, 10 A
Battery capacity
20–300 Ah
Charging category
AC charging
Back current drain*
Corresponding to less than 1 Ah/month
Battery voltage
12 V
Battery chemistry
Lead acid
Ambient operating temperature
-20 ˚C to +50 ˚C
Start voltage
2.0 V
Battery types
12 V:; WET; MF; Ca/Ca; AGM; GEL
Temperature compensation
External charge voltage temperature compensation sensor
Degree of protection
2 years
Warranty, info
Limited Warranty
*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.
