CHARGESTORM® CONNECTED 2

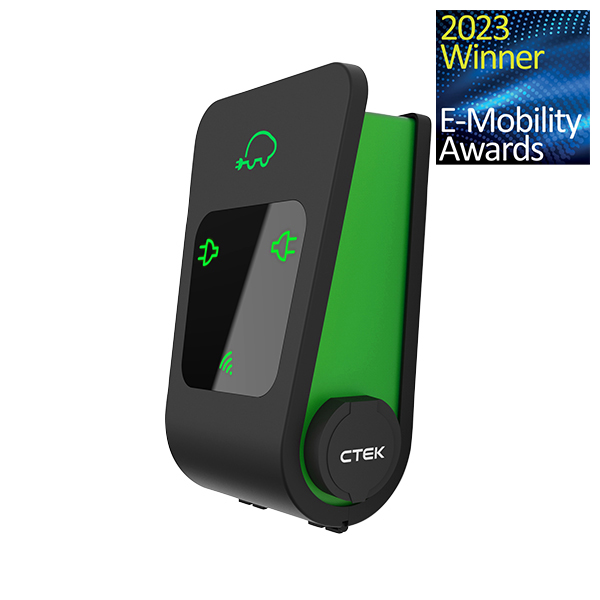

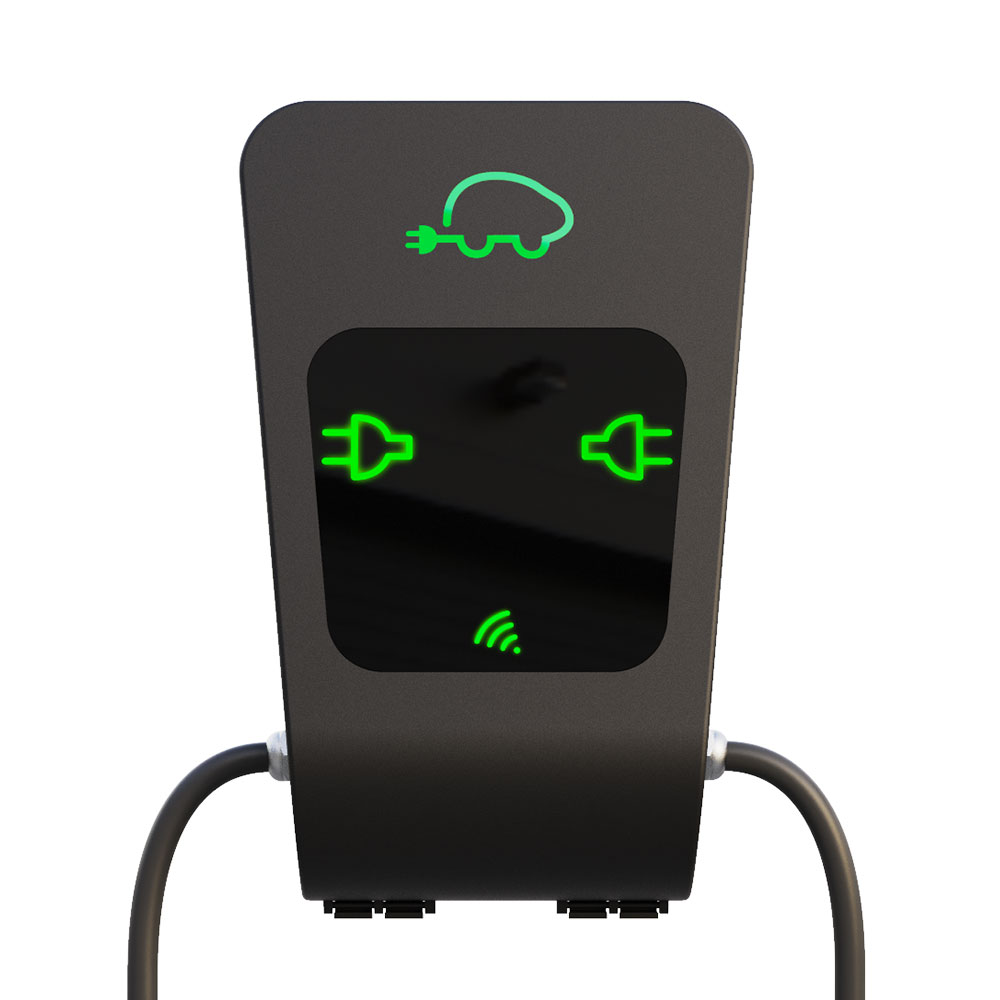

CHARGESTORM® CONNECTED 2 is an improved and updated version of our advanced EV charger with a range of functions and built in safety features. It has a powerful CCU charge controller, which can handle dual type 2 outlets/charging cables. CHARGESTORM® CONNECTED offers dynamic load balancing support through NanoGrid™ between multiple devices.

Part no. 910-xxxxx

Quotation request

Description

Wall or pole mounted EV charger

CHARGESTORM® CONNECTED 2 is a state of the art EV charger specifically designed to be safe and easy to use. It’s ideal for home, business, public parking and tenant-owner housing associations, and it meets all the required technical safety standards. Our EV charger is available in several different power and outlet/charging cable models. An Ethernet cable connects the EV charger to the internet. If Ethernet cannot be used, the unit can also be supplied with an optional 3G/4G modem. Internet connection is required for portal services and app management. We support integration with all major operators in electric car charging.

Features

Adjustable charging power via app or software
NanoGrid™ dynamic load balancing support
Built-in fuse, AC and DC ground fault detection built-in energy meter
Easy installation and lock protected for maintenance
Wall or pole mounted
Ambient operating temperature from -30 °C to +50 °C
RFID reader
OCPP 1.5/1.6
IP54 and IK10
2-year warranty

Choose variant

Part no.	Outlet	Fixed charging cable	Vehicle connector	Number of phases	Charging current	Charging power
910-17045		One Fixed, straight charging cable	Type 2	1 Phase	6-16 A	1.4-3.7 kW	Quotation request
910-17047		One Fixed, straight charging cable	Type 2	3 Phase	6-16 A	1.4-11 kW	Quotation request
910-17091		Two fixed, straight charging cables	Type 2	1 Phase	6-32 A	1.4-7.4 kW	Quotation request
910-17092		Two fixed, straight charging cables	Type 2	3 Phase	6-32 A	1.4-22 kW	Quotation request
910-17028	One type 2 outlet			3 Phase	6-32 A	1.4-22 kW	Quotation request
910-17059	Dual type 2 outlets			3 Phase	6-16 A	1.4-11 kW	Quotation request
910-17060	Dual type 2 outlets			3 Phase	6-32 A	1.4-22 kW	Quotation request
910-17040		Two fixed, straight charging cables	Type 2	1 Phase	6-16 A	1.4-3.7 kW	Quotation request
910-17086		Two fixed, straight charging cables	Type 2	3 Phase	6-16 A	1.4-11 kW	Quotation request
910-17048		One Fixed, straight charging cable	Type 2	3 Phase	6-32 A	1.4-22 kW	Quotation request
910-17042	One type 2 outlet	One Fixed, straight charging cable	Type 2	1 Phase	6-16 A	1.4-3.7 kW	Quotation request
910-17049	One type 2 outlet			1 Phase	6-16 A	1.4-3.7 kW	Quotation request
910-17050	One type 2 outlet			3 Phase	6-16 A	1.4-11 kW	Quotation request
910-17046		One Fixed, straight charging cable	Type 2	1 Phase	6-32 A	1.4-7.4 kW	Quotation request
910-17062	One type 2 outlet			1 Phase	6-32 A	1.4-7.4 kW	Quotation request
910-17063	Dual type 2 outlets			1 Phase	6-32 A	1.4-7.4 kW	Quotation request
40-477		Two fixed, coiled charging cables	Type 2	1 Phase	6-32 A	1.4-7.4 kW	Quotation request
910-17051	Dual type 2 outlets			1 Phase	6-16 A	1.4-3.7 kW	Quotation request

Technical data

Version: 2
Charging category: AC charging
Ambient operating temperature: -30 °C to +50 °C
Altitude: < 2000 m
Fixed charging cable: One fixed, straight charging cable/Two fixed straight charging cables. Option 1: extra long straight cable (7,5 m). Option 2: fixed coiled cable.
Fixed charging cable length: 4 m
Locking actuator (type 2 outlet): Yes
Charging current: 6–32 A
Outlet: Single- or dual type 2 outlets
Authentication: RFID, APP
Load balancing: Load balancing (NANOGRID™ Internal) is included between the dual charging points of the EV charger. Options for other load balancing solutions between several units (NANOGRID™ Home, NANOGRID™ Local, NANOGRID™ CTEK Grid Central).
Number of phases: 1 Phase/3 Phase
Vehicle connector: Type 1/Type 2
Schuko outlet: 10A/230V
Communication protocol: OCPP 1.6
Shuko outlet type: CEE 7/3
Schuko text**: **Option, can only be combined with a dual type 2 outlet EV charger. Replacing one of the type 2 outlets.
Charging power: 1.4–22 kW
Approval: Download the Declaration of Conformity from WWW.CTEK.COM
Energy meter: MID (standard)
Power input connector: 16 mm2 terminal block
Frequency: 50 Hz
Connectivity: 3G; 4G; Ethernet
Compatibility mains: IT-net, TN-net
Enclosure color: Black; Green
Relative humidity: Up to 100% at 25 °C
Enclosure color (plastic): Black
Enclosure color (metal): Green
Compliance: CE; IEC 61851-1; IEC 62196-2; IEC 61439-7
Enclosure material: Plastic; Metal
Enclosure lock: Key
Rated voltage (Input): 230/400 V
Ground fault detection: Built-in ground fault detection, 30 mA AC, 6 mA DC
Ground fault reset: Semi-automatic
RFID reader: Yes
RFID tag standard: ISO15693, ISO14443A (MIFARE)
Material: Plastic; Metal
Degree of protection: IP54
Impact protection: IK10
Enclosure dimensions (H x W x D): 449 x 282 x 160 mm
App support: Smartphone display; Taking Charge App for Android and IOS (requires that the EV charger is connected to the cloud service Charge portal)
User interface: LED symbols
Disclaimer: All products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.
Weight: ~ 7–14 kg
Depends on model text*: Depends on model
Warranty: 2 years

CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.
