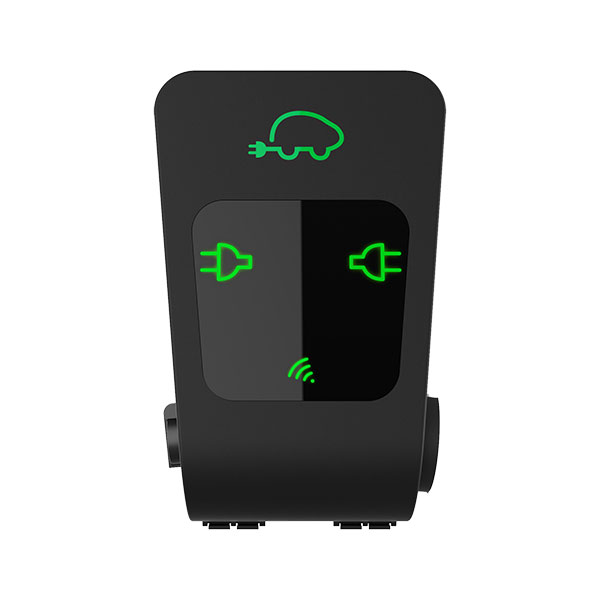

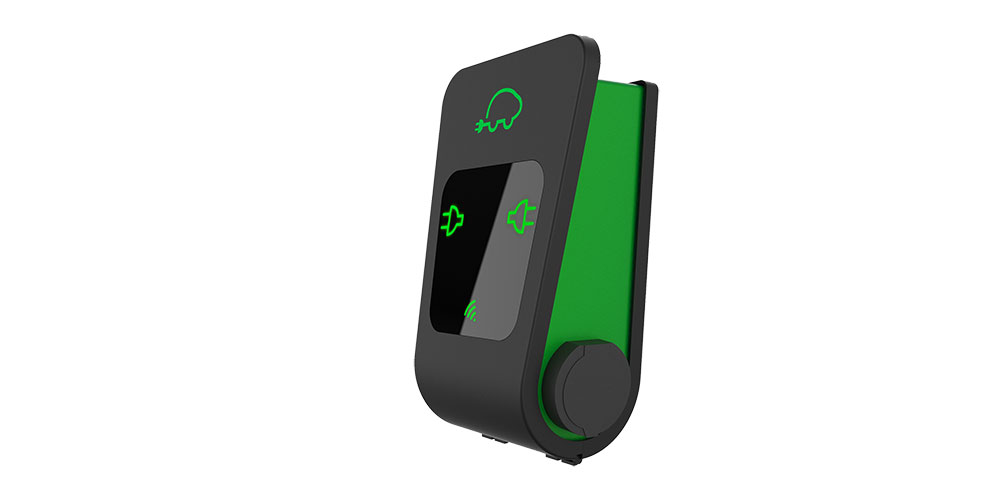

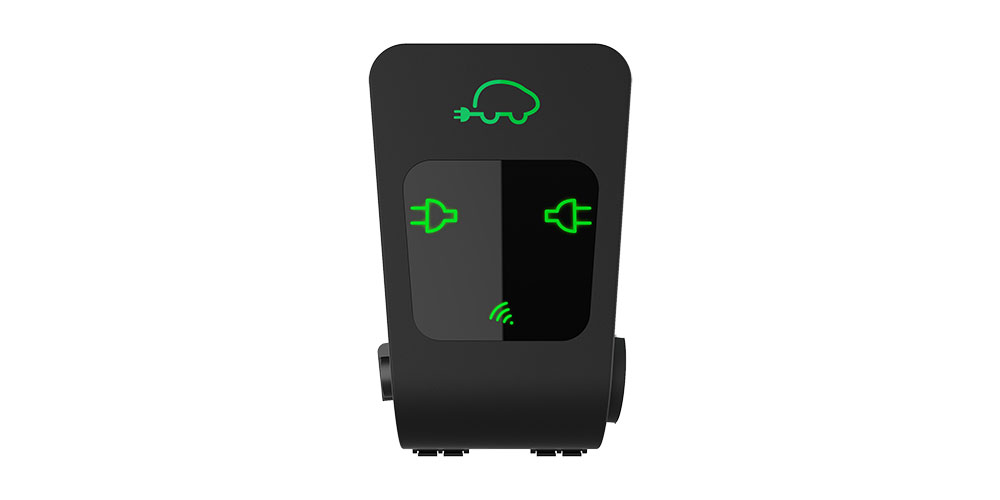

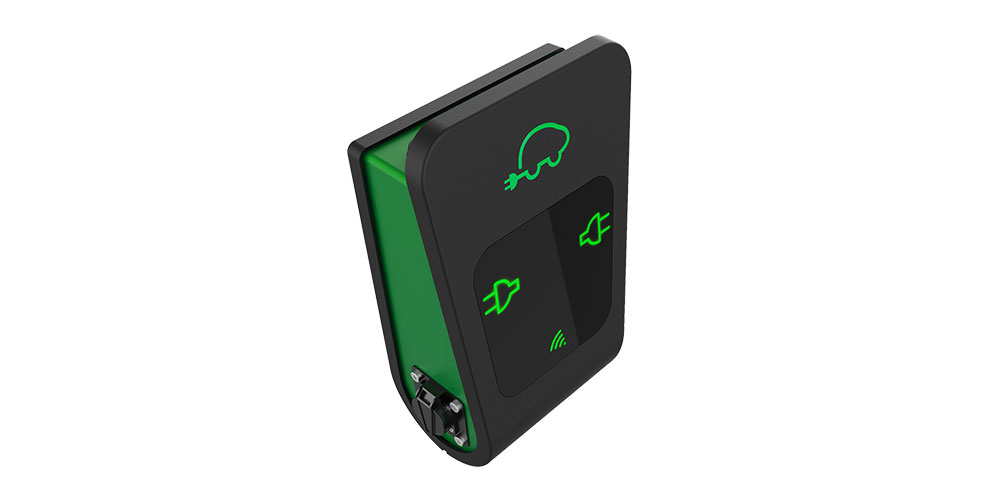

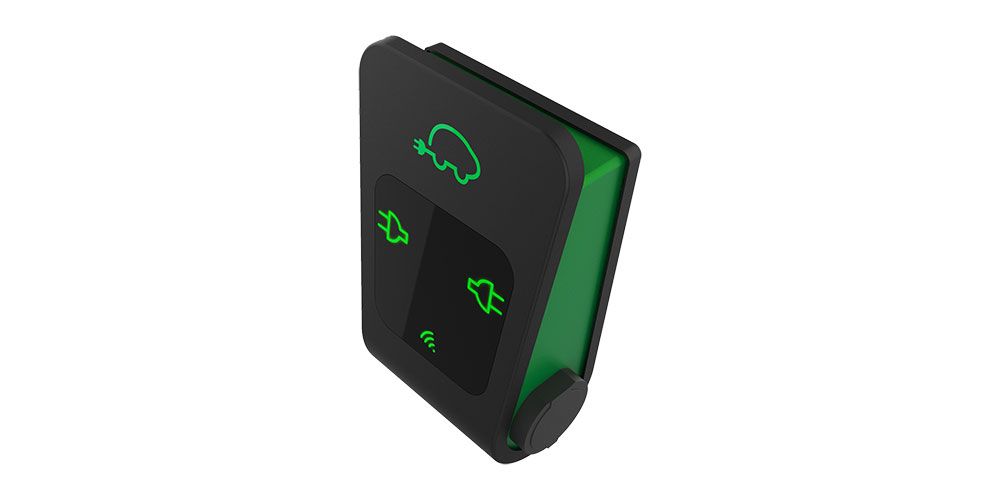

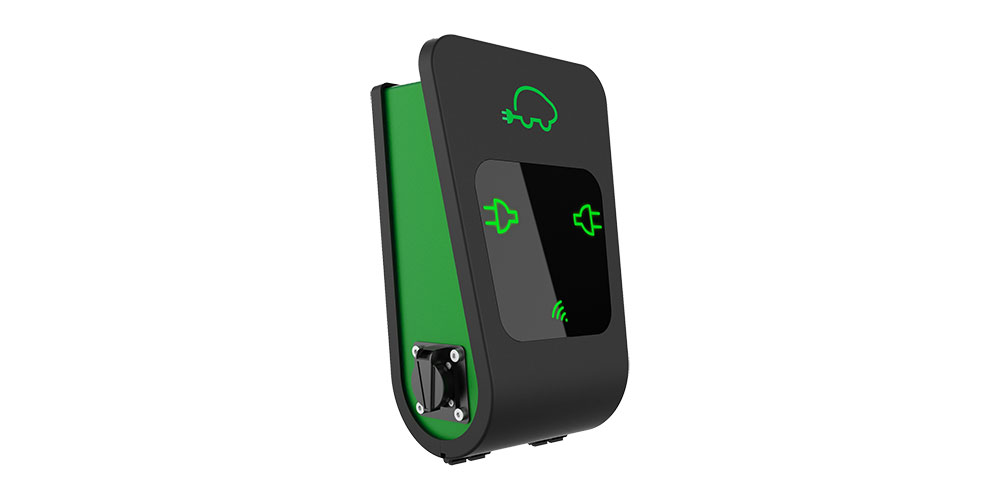

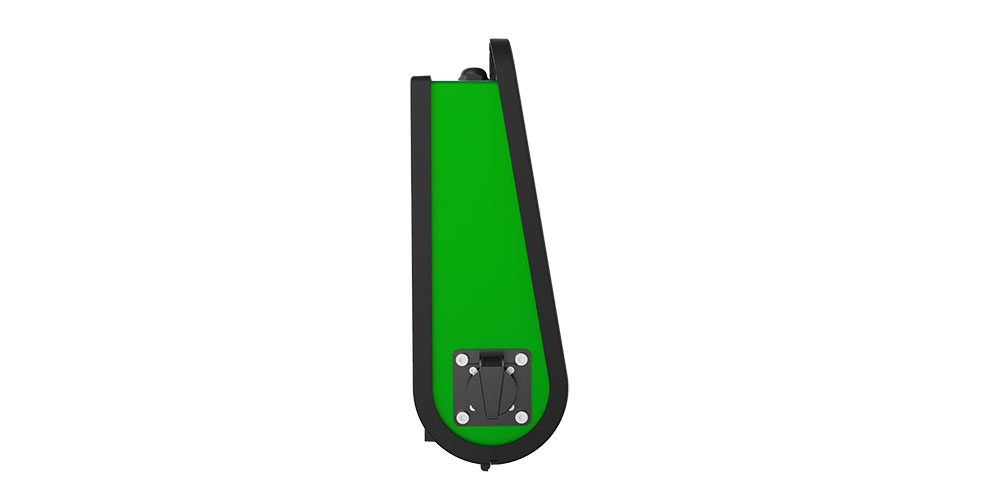

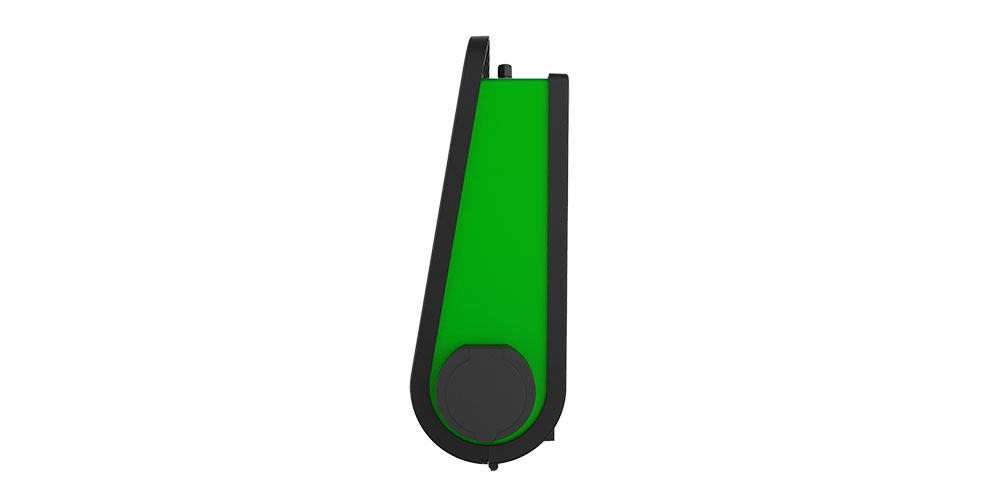

CHARGESTORM® CONNECTED 910-00058
CHARGESTORM® CONNECTED is an advanced EV charger with a range of functions and built in safety features. Compatible with NANOGRID™, a dynamic load balancing solution, for use with multiple devices.
Part no. 910-00058
‹
›
›
Description
EV-charger, one outlet, one schuko outlet
CHARGESTORM® CONNECTED is a state of the art EV charger specifically designed to be safe and easy to use. It’s ideal for home, business, public parking and tenant-owner housing associations, and it meets all the required technical safety standards. An Ethernet cable connects the EV charger to the internet. If Ethernet cannot be used, the unit can also be supplied with an optional 3G modem. Internet connection is required for portal services and app management. We support integration with all major operators in electric car charging.
Features
- Charging power 1.4–3.7 kW
- Adjustable charging power via app or software
- NanoGrid™ dynamic load balancing support
- Schuko outlet
- Built-in fuse, AC and DC ground fault detection, built-in Mid-approved energy meter
- Easy installation and lock protected for maintenance

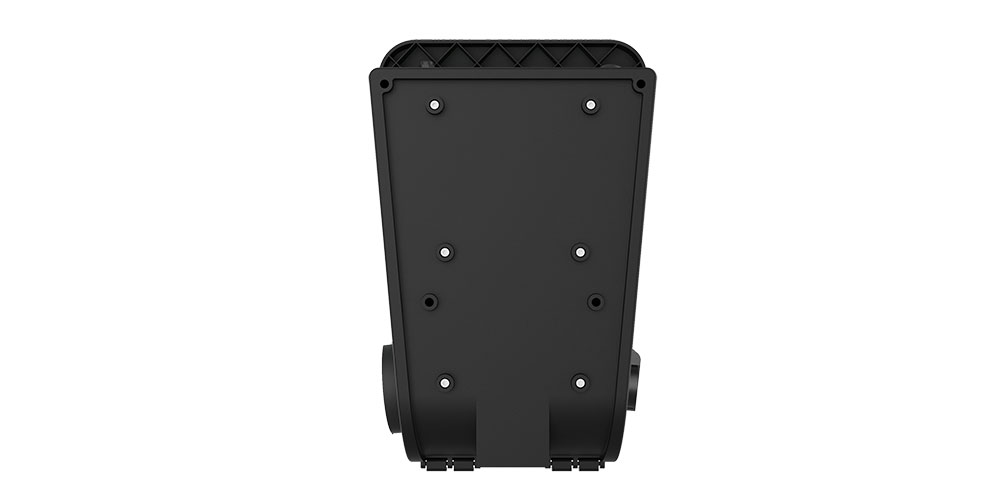

- Wall or pole mounted
- Ambient operating temperature from -30 °C to +50 °C
- RFID reader
- OCPP 1.6
- IP44 and IK10
- 2-year warranty
Technical data
- Version
- 1
- Charging category
- AC charging
- Ambient storage temperature
- -30 °C to +50 °C
- Ambient operating temperature
- -30 °C to +50 °C
- Altitude
- < 2000 m
- Charging station connector
- Type 2
- Locking actuator (type 2 outlet)
- Yes
- Charging current
- 6–16 A
- Outlet
- One type 2 outlet; Schuko
- Authentication
- RFID, APP
- Load balancing
- Options for load balancing solutions between several units (NANOGRID™ Home, NANOGRID™ Local, NANOGRID™ Grid Controller).
- Number of phases
- 1 Phase
- Schuko outlet
- 10A/230V
- Communication protocol
- OCPP 1.6
- Shuko outlet type
- CEE 7/3
- Charging power
- 1.4–3.7 kW
- Approval
- Download the Declaration of Conformity from WWW.CTEK.COM
- Energy meter
- Internal MID approved
- Power input connector
- 10 mm2 quick connector
- Frequency
- 50 Hz
- Connectivity
- 3G; Ethernet
- Compatibility mains
- IT-net, TN-net
- Enclosure color
- Black; Green
- Relative humidity
- Up to 100% at 25 °C
- Enclosure color (plastic)
- Black
- Enclosure color (metal)
- Green
- Compliance
- CE; IEC 62196-2; IEC 61851-1; IEC 61439-7
- Enclosure material
- Plastic; Metal
- Enclosure lock
- Key
- Rated voltage (Input)
- 230 V
- Ground fault detection
- Built-in ground fault detection, 30 mA AC, 6 mA DC
- RFID reader
- Yes
- RFID tag standard
- ISO15693, ISO14443A (MIFARE)
- Degree of protection
- IP44
- Impact protection
- IK10
- Enclosure dimensions (H x W x D)
- 449 x 282 x 160 mm
- App support
- Smartphone display; Taking Charge App for Android and IOS (requires that the EV charger is connected to the cloud service Charge portal)
- User interface
- LED symbols
- Disclaimer
- All products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.
- Weight
- ~ 24 kg
- Packaging size (L x W x H)
- 515 x 235 x 420
- Warranty
- 2 years
- CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.
