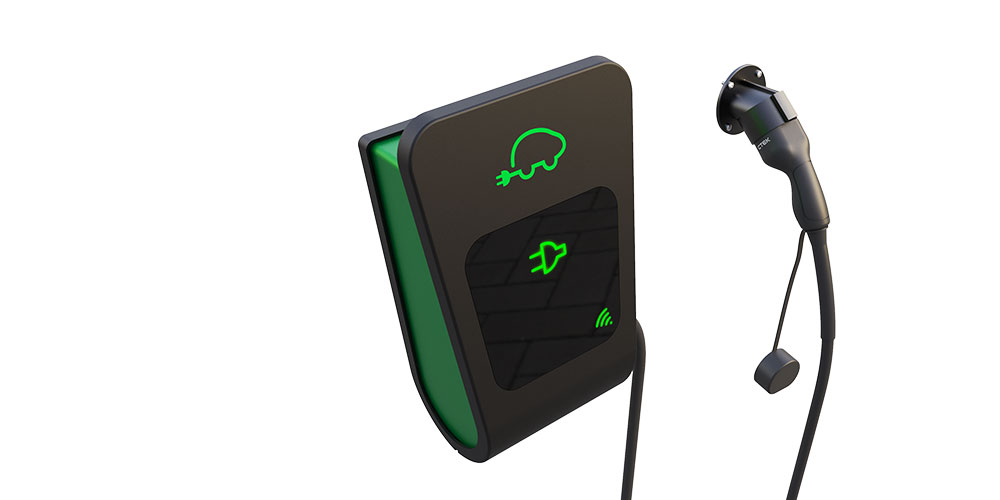

CHARGESTORM® CONNECTED 910-17045

Part no. 910-17045

Description

Technical data


Version
2
Charging category
AC charging
Ambient storage temperature
-30 °C to +50 °C
Ambient operating temperature
-30 °C to +50 °C
Altitude
< 2000 m
Fixed charging cable
One fixed, straight charging cable
Fixed charging cable length
4 m
Charging current
6–16 A
Authentication
RFID, APP
Load balancing
Options for load balancing solutions between several units (NANOGRID™ Home, NANOGRID™ Local, NANOGRID™ Grid Controller).
Number of phases
1 Phase
Vehicle connector
Type 2
Communication protocol
OCPP 1.6
Charging power
1.4–3.7 kW
Approval
Download the Declaration of Conformity from www.ctekemobility.com
Energy meter
Internal (standard), MID (option)
Power input connector
10 mm2 quick connector
Frequency
50 Hz
Connectivity
Ethernet
Compatibility mains
IT-net, TN-net
Enclosure color
Green
Relative humidity
Up to 100% at 25 °C
Enclosure color (plastic)
Black
Enclosure color (metal)
Green
Compliance
IEC 61439-7
Enclosure material
Metal
Enclosure lock
Key
Rated voltage (Input)
230 V
Ground fault detection
Built-in ground fault detection, 30 mA AC, 6 mA DC
Ground fault reset
Semi-automatic
RFID reader
Yes
RFID tag standard
ISO15693, ISO14443A (MIFARE)
Degree of protection
IP54
Impact protection
IK10
Enclosure dimensions (H x W x D)
449 x 282 x 160 mm
App support
Taking Charge App for Android and IOS (requires that the EV charger is connected to the cloud service Charge portal)
User interface
LED symbols
Disclaimer
All products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.
Packaging size (L x W x H)
515 x 235 x 420
Warranty
2 years
Warranty, info
Limited Warranty
CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.
