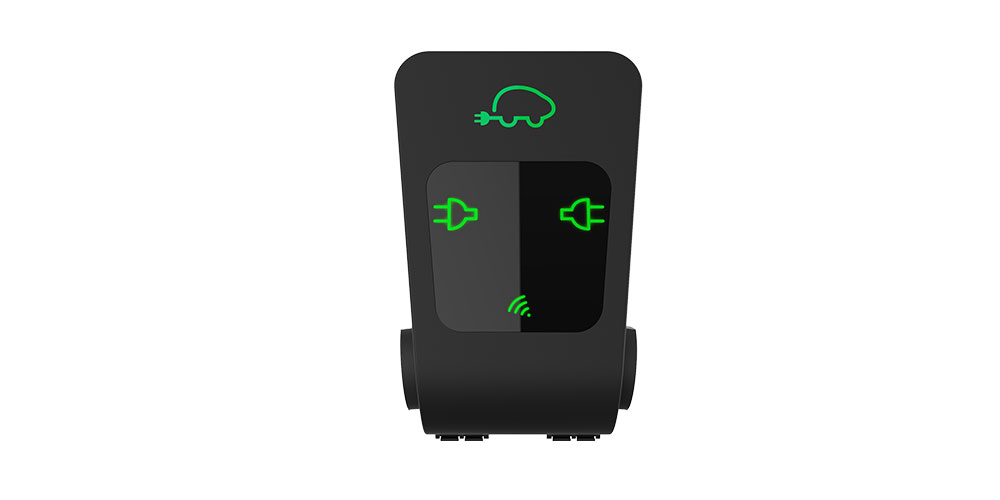

CHARGESTORM® CONNECTED 910-17063

CHARGESTORM® CONNECTED 2 is an improved and updated version of our advanced EV charger with a range of functions and built in safety features. It has a powerful CCU charge controller, which can handle dual type 2 outlets/charging cables. CHARGESTORM® CONNECTED 2 has internal load balancing between the two unit outlets as standard, and is also compatible with NANOGRID™, a dynamic load balancing solution, for use with multiple devices.

Part no. 910-17063

Quotation request

Description


EV-charger, dual outlets


CHARGESTORM® CONNECTED 2 is a state of the art EV charger specifically designed to be safe and easy to use. It’s ideal for home, business, public parking and tenant-owner housing associations, and it meets all the required technical safety standards. An Ethernet cable connects the EV charger to the internet. If Ethernet cannot be used, the unit can also be supplied with an optional 3G/4G modem. Internet connection is required for portal services and app management. We support integration with all major operators in electric car charging.

Features

  • Charging power 1.4–7.4 kW
  • Adjustable charging power via app or software
  • NanoGrid™ dynamic load balancing support
  • Built-in fuse, AC and DC ground fault detection, built-in energy meter
  • Easy installation and lock protected for maintenance
  • Wall or pole mounted
  • Ambient operating temperature from -30 °C to +50 °C
  • RFID reader
  • OCPP 1.5/1.6
  • IP54 and IK10
  • 2-year warranty

Technical data


Version
2
Charging category
AC charging
Ambient storage temperature
-30 °C to +50 °C
Ambient operating temperature
-30 °C to +50 °C
Altitude
< 2000 m
Charging station connector
Type 2
Locking actuator (type 2 outlet)
Yes
Charging current
6–32 A
Outlet
Dual type 2 outlets
Authentication
RFID, APP
Load balancing
Load balancing (NANOGRID™ Internal) is included between the dual outlets of the EV charger. Options for other load balancing solutions between several units (NANOGRID™ Home, NANOGRID™ Local, NANOGRID™ CTEK Grid Central).
Number of phases
1 Phase
Communication protocol
OCPP 1.5; OCPP 1.6
Charging power
1.4–7.4 kW
Approval
Download the Declaration of Conformity from WWW.CTEK.COM
Energy meter
MID (standard)
Power input connector
16 mm2 terminal block
Frequency
50 Hz
Connectivity
3G; 4G; Ethernet
Compatibility mains
IT-net, TN-net
Enclosure color
Black; Green
Relative humidity
Up to 100% at 25 °C
Enclosure color (plastic)
Black
Enclosure color (metal)
Green
Compliance
CE; IEC 62196-2; IEC 61851-1; IEC 61439-7
Enclosure material
Plastic; Metal
Enclosure lock
Key
Rated voltage (Input)
230 V
Ground fault detection
Built-in ground fault detection, 30 mA AC, 6 mA DC
Ground fault reset
Semi-automatic
RFID reader
Yes
RFID tag standard
ISO15693, ISO14443A (MIFARE)
Degree of protection
IP54
Impact protection
IK10
Enclosure dimensions (L x W x H)
160 x 282 x 449 mm
App support
Smartphone display; Taking Charge App for Android and IOS (requires that the EV charger is connected to the cloud service Charge portal)
User interface
LED symbols
Disclaimer
All products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.
Weight
~ 9 kg
Packaging size (L x W x H)
515 x 235 x 420
Warranty
2 years
CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.

Documents

CHARGESTORM_CONNECTED_910_17063-manual-Low-UK-EN.pdf

CHARGESTORM_CONNECTED_910_17063-productsheet-low-UK-EN.pdf
